Carton box filling machine ACB-W

* Speed depends on the filling volume, product properties, thickness of packaging material, and package dimensions.

Available types of fillers

Description

Carton box filling machine ACB-W is designed for automatic filling of granular and powder products, such as cereals, snacks, nuts, pulses, grains, spices, sugar, salt, baking soda, and other similar products in premade carton boxes.

The carton box filling machine is a fully automatic unit and requires minimum operator skills for setting operation parameters, adjusting the dosing weight, installing film rolls, loading product inside the product hopper.

Working principle*

The operator places unfolded premade carton boxes into a special feeding magazine. The machine takes boxes one by one and places them on a conveyor. On the next station, the machine folds carton boxes to the final rectangular shape and moves boxes to the next station.

The product is filled through the throat of the product hopper onto a vibrating chute, which vibrates with a predetermined amplitude and feeds the product into the weighing bucket. The bucket is connected to the filler with a strain gauge. After reaching the set weight parameters, the load cell sends a signal to the filler control unit, which stops the vibrating chute.

The filler controller signals the weighing bucket to open. The bucket opens, feeding the product through the hose. The product is filled into a formed carton box. Filled boxes are then moved to the hot melt glue unit which sprays a set amount of glue to the top closure panel of the box. Once the glue is applied, the box is securely closed with the help of special mechanical levers.

The final package (filled carton box) falls to the floor, into a special container (box), or onto an outfeed conveyor.

* For a machine with a linear weigh filler.

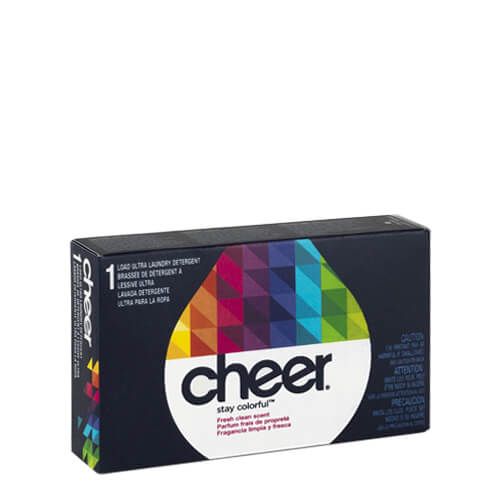

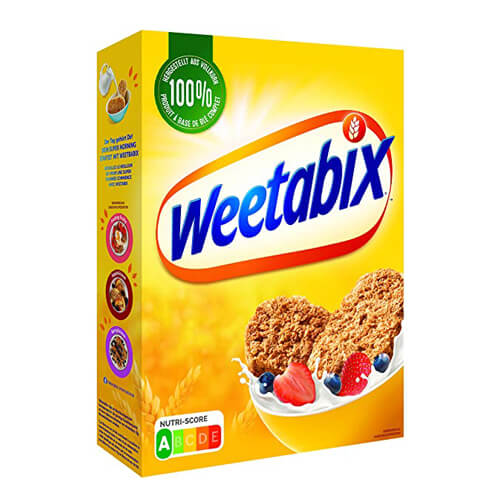

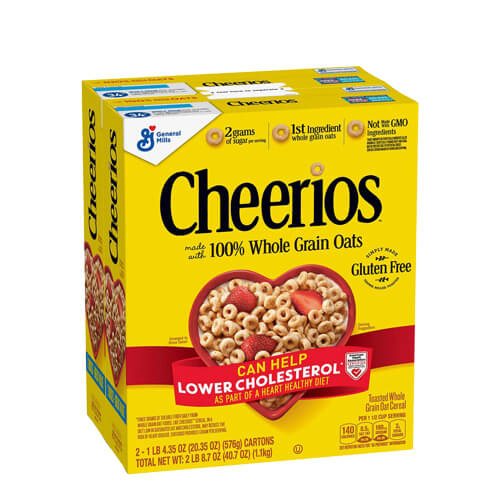

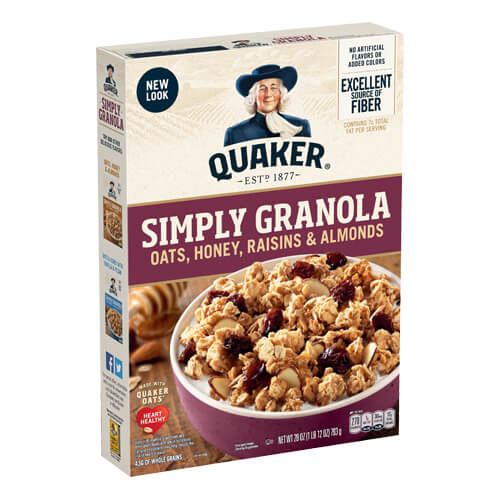

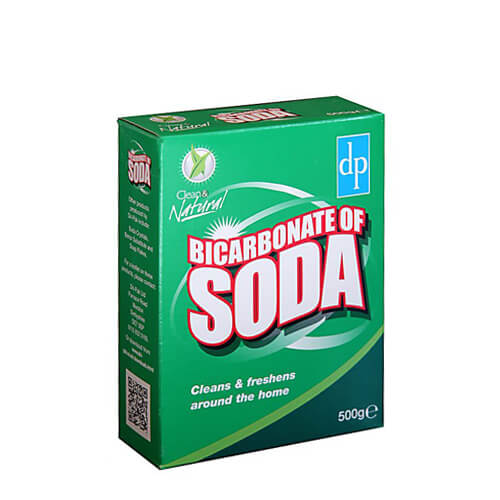

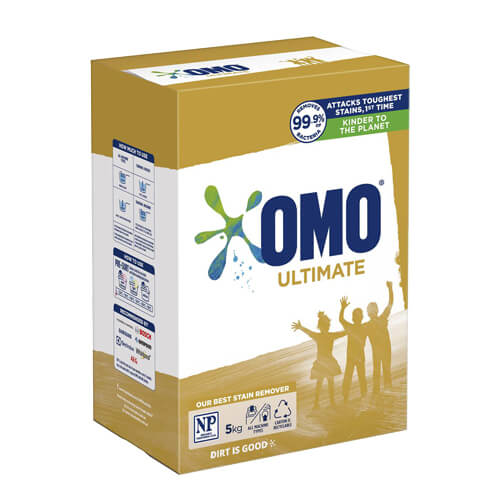

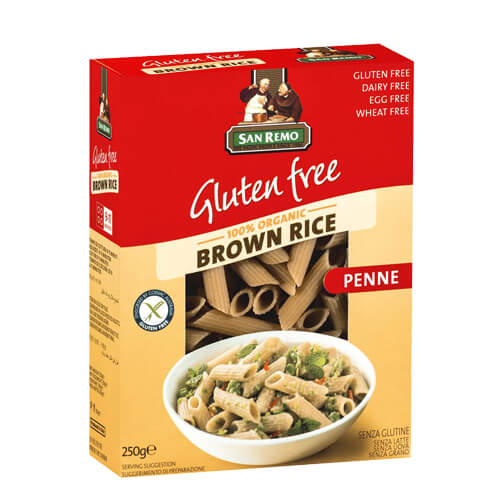

Final product samples
